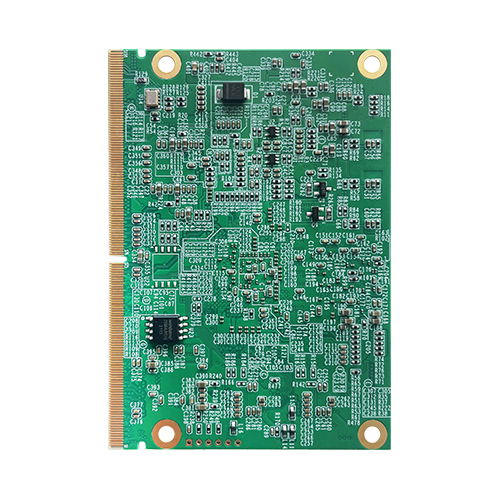

WEC-SD9

◐ Belong to the "Sprite" series core-board, featuring excellent compatibility and being compatible with other core boards of the Sprite series

◐ Compatible with SemiDrive D9 serial processor

◐ Up to 8 GB memory

◐ 2×GbE，10/100/1000 Mbps

◐ Supports LVDS/MIPI-DSI display

◐ Support USB, UART, CAN, HDM, LVDS, eDP etc

◐ Supports 33 high-speed I/O, provided by the integrated FPGA

Order

IntroduceModelSizeTechnical

This product belongs to the "Sprite" series core board of Hangzhou Yanzhi Technology Co., Ltd. It has extremely strong compatibility and is compatible with other core boards of the Sprite series.

Equipped with SemiDrive D9 serial ( D9340、D9350、D9360 ) high-performance multi-core ARM Cortex-A55 and R5 processors. it supports LPDDR4X memory, with a capacity of up to 8GB. it supports 2 Gigabit network interfaces, with adaptive speeds of 10/100/1000Mbps. Supports multiple interfaces such as USB, UART, GPIO, CAN, PCIe and SPI etc..

▇ Key features of the Sprite series core board products:

◐ Cross-platform compatibility: The Sprite series core boards are compatible with multiple processor platforms such as x86 and ARM architectures

◐ Interface compatibility: The Sprite series core boards all adopt the MXM interface

◐ Signal compatibility: The Sprite series core boards define the pin signals according to unified rules

◐ Provide high-speed IO: The Sprite series core boards integrate FPGA chips and can provide over 30 high-speed IO channels

The same Base-board can be compatible with all the core boards of the Sprite series.

Product Model	Product Model	WEC-SD9340	WEC-SD9350	WEC-SD9360
CPU	CPU Model	SemiDrive D9340	Semidrive D9350	Semidrive D9360
	Core	4×Cortex-A55 & 2×Cortex-R5	5× Cortex-A55 & 3× Cortex-R5	6× Cortex-A55 & 1×Cortex-R5
	Frequency	Cortex-A55 @ 2.0 GHz, Cortex-R5 @ 800MHz
Memory	Type	LPDDR4X, 2400MT/s, Onboard Memory
	Max Capacity	8 GB
Storage	Type	eMMC 5.1
	Capacity	8/16/32/64 GB
Display	LVDS	Supports dual-channel 18/24-bit LVDS or MIPI-DSI. Resolution up to 2K
	MIPI-CSI	Support 4-channel MIPI-CSI
Ethernet	LAN	2, 10/100/1000 Mbps, YT8511
I/O Interface	USB	1× USB 3.0, 1 × USB 2.0（boot）
	PCIe	3× single-lane PCIe 2.0
	UART	6
	GPIO	30
	High-speed IO	33, Provided by the integrated FPGA
	I2C	3
	I2S	1, audio interface
	CAN	2
	SPI	1
	PWM	3
	SATA	1×SATA 3.0
	SDIO	1
	RTC	Support
OS	OS	Linux、Android
Power Supply	Type	DC
	Input Voltage	9~24V
Environment	Operating Temp.	Common grade: -10～60℃, Industrial grade: -40～85℃
	Storage Temp.	-40～85℃
	Operating Humi.	10- 90% @ 40℃, non-condensing
	Storage Humi.	0- 95% @ 60℃, non-condensing
Dimension	Outside Dime.	82mm×58mm
