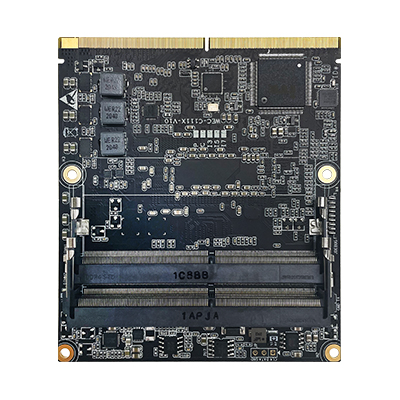

WEC-CTGL

◐ Extremely strong compatibility and is compatible with the WEC-CEHL series of core boards.

◐ Intel 11th generation Tiger Lake series processors

◐ DDR4 memory, with 2 dual-channel SO-DIMM slots, up to 64GB

◐ 1×GbE, 10/100/1000 Mbps

◐ 6×UART, 10×GPIO

◐ High-definition display via HDMI and eDP

◐ 5×1-lane PCIe 3.0, 1×4-lane PCIe 4.0

Order

IntroduceModelSizeTechnical

This product is an industrial core board of Hangzhou Yanzhi Technology Co., Ltd. It has extremely strong compatibility and is compatible with the WEC-CTGL core board.

Equipped with Intel's 11th generation Tiger Lake series processors, it supports DDR4 memory, with 2 dual-channel SO-DIMM slots, up to 64GB; supports 1 gigabit Ethernet, with adaptive speeds of 10/100/1000Mbps; supports 4 USB 3.0 ports, 10 USB 2.0 ports; supports 6 UARTs, 10 GPIOs; supports high-definition display via HDMI or eDP; supports 5 PCIe 3.0 ×1 and 1 PCIe 4.0 ×4.

▇ Key features of the Sprite series core board products:

◐ Cross-platform compatibility: Compatible with Intel's 11th generation Core Tiger Lake series and 12th generation Celeron Elkhart Lake series processors

◐ Interface compatibility: The core boards all adopt the MXM interface

◐ Signal compatibility: The core boards define the pin signals according to unified rules

The same Base-board can be compatible with WEC-CTGL and WEC-CEHL serials core boards.

Product Model		WEC-C6305E	WEC-C1115	WEC-C1115E	WEC-C1125	WEC-C1135	WEC-C1165
CPU	CPU	6305E	i3-1115G4	i3-1115G4E	i3-1125G4	i5-1135G7	i7-1165G7
	Cores/ Threads	2/2	2/4	2/4	4/8	4/8	4/8
	Max. Frequency	1.80GHz	4.10GHz	3.9GHz	3.70 GHz	4.20GHz	4.7GHz
	LLC	4 MB	6 MB	6 MB	8 MB	8 MB	12 MB
	GPU	Intel UHD Graphics				Intel Iris Xe Graphics
	TDP	15W	28W	28W	28W	28W	28W
	BIOS	AMI UEFI BIOS
Memory	Type	DDR4，3200 MHz
	Max Capacity	64GB
	Channel/Socket	2× dual-channel SO-DIMM slots
	ECC	N/A
Storage	SATA	2 × SATA 3.0
	NVMe	Support
Display	eDP	1，Max resolution 4096 x 2304 @ 60Hz
	HDMI	1，Max resolution 4096 x 2304 @ 60Hz
Ethernet	LAN	1，10/100/1000 Mbps，Intel I219
IO Interface	USB	4×USB 3.0，10×USB 2.0
	UART	6， 4× 2-wire / 2×8-wire
	SATA	2× SATA 3.0
	GPIO	10
	PCIe	5 × single-lane PCIe 3.0，1× 4-lane PCIe 4.0 （Excluding WEC-C6305E）
	Audio	1，Intel HD audio interface
	SM	1
	SPI	1
	Smart Fan	System FAN（optional）
	Watchdog	Supported by BIOS
OS	OS	Windows 10/11，Ubuntu
Power Supply	Type	DC
	Input Voltage	9~12V
Environment	Operating Temp.	-10 ~ 60 °C
	Storage Temp.	-40 ~ 85 °C
	Operating Humi.	10-95% @40℃，non-condensing
	Storage Humi.	0-95% @60℃，non-condensing
Dimension	Outside Dime.	95mm×82mm
