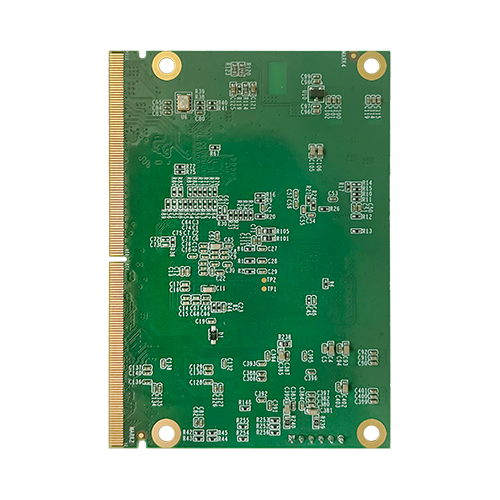

WEC-SMX6UL

This product belongs to the "Sprite" series core board of Hangzhou Yanzhi Technology Co., Ltd. It has extremely strong compatibility and is compatible with other core boards of the Sprite series.

Equipped with NXP i.MX 6ULL ARM processors, ARM Cortex-A7. DDR3L memory, with a capacity of up to 512MB. it supports 2 FE network interfaces, with adaptive speeds of 10/100 Mbps. Supports multiple interfaces such as 2×USB 2.0, 6×UART, 19×GPIO, 2×CAN etc.. Integrates FPGA and provides 33 channels of high-speed I/O.

▇   Key features of the Sprite series core board products:

◐  Cross-platform compatibility: The Sprite series core boards are compatible with multiple processor platforms such as x86 and ARM architectures

◐  Interface compatibility: The Sprite series core boards all adopt the MXM interface

◐  Signal compatibility: The Sprite series core boards define the pin signals according to unified rules

◐  Provide high-speed IO: The Sprite series core boards integrate FPGA chips and can provide over 30 high-speed IO channels

The same Base-board can be compatible with all the core boards of the Sprite series.

Click or scan the QR code

to download the product specification
