WEB-S242X

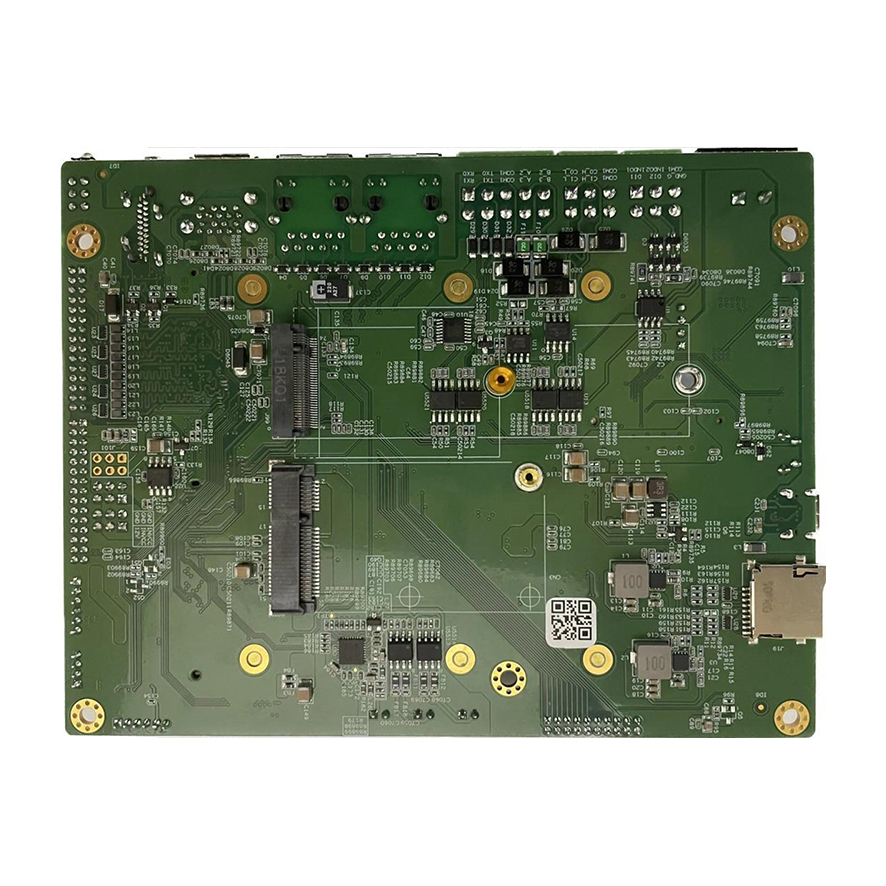

This product is a matching base board for the "Sprite" series core board of Hangzhou Ranzhi Technology Co., Ltd. It has extremely strong compatibility and can be compatible with all core boards of the Sprite series.

It provides a variety of peripheral interfaces, including 2 Gigabit Ethernet ports, 2 RS232 ports, 2 RS485 ports, 2 CAN ports, 2 DI ports, 2 DO ports, 2 USB 3.0 ports, and 1 HDMI port. It also has built-in multiple expansion interfaces, including 33 high-speed IO interfaces, with extremely strong expansion capabilities.

▇   Key features of the Sprite series core board products:

◐  Cross-platform compatibility: The Sprite series core boards are compatible with multiple processor platforms such as x86 and ARM architectures

◐  Interface compatibility: The Sprite series core boards all adopt the MXM interface

◐  Signal compatibility: The Sprite series core boards define the pin signals according to unified rules

◐  Provide high-speed IO: The Sprite series core boards integrate FPGA chips and can provide over 30 high-speed IO channels

The same Base-board can be compatible with all the core boards of the Sprite series.

Click or scan the QR code

to download the product specification
