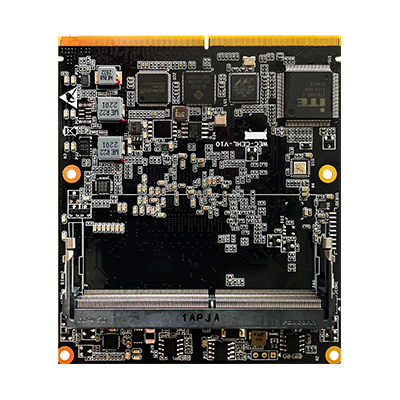

WEC-CEHL

◐ Compatible with the WEC-CTGL series core board

◐ Intel Elkhart Lake processor

◐ DDR4 memory，1×2-channel SO-DIMM sockets，up to 32 GB

◐ 1×GbE，10/100/1000Mbps

◐ 4×USB 3.0, 10×USB 2.0, 6×UART, 10×GPIO

◐ Display: HDMI, eDP

◐ 6×1-lane PCIe 3.0

Order

IntroduceModelSizeTechnical

This product belongs to the WEC-Cxxxx series core-board of Hangzhou Yanzhi Technology Co., Ltd., which has super compatibility and can be compatible with all core boards of WEC-CTGL series.

Abundant external peripheral interfaces, support 2 SATA, mPCIe, M.2 interface SSD hard disk. support HDMI 2.0 display, 1 Gigabit Ethernet, 4G/5G wireless network; 6 UARTs, 10 GPIOs, 6 PCIe 3.0, ; 4 USB 3.0, 10 USB 2.0. Support 12V voltage input.

▇ Compatible performance features:
◐ Cross-platform compatibility: Compatible with Intel's 11th Gen Core Tiger Lake series and 12th Gen Celeron Elkhart Lake series processor
◐ Interface compatibility: MXM physical interface is used

◐ Signal compatibility: Pin signals are defined according to uniform rules

The same base-board can be adapted to WEC-CTGL and WEC-CEHL series core boards.

Product Model	Product Model	WEC-SJ6412	WEC-SJ6413	WEC-SJ6426
CPU	Processor Number	Intel Celeron J6412	Intel Celeron J6413	Intel Celeron J6426
	Cores/ Threads	4/4	4/4	4/4
	Max. Frequency	2.6 GHz	3.00 GHz	3.00 GHz
	Cache	1.5 MB	1.5 MB	1.5 MB
	TDP	10 W	10 W	10 W
	BIOS	AMIUEFIBIOS
Memory	Type	DDR4，3200 MHz
	Max Capacity	32GB
	Channel/Socket	Dual-channel / Onboard Memory
	ECC	N/A
Storage	eMMC	eMMC 5.1， 8/16/32/64/128 GB
	SATA	1× SATA 3.0
GPU	Controller	Intel UHD Graphics for 10th Gen. Intel Processors
	Max. Frequency	800 MHz
Display	HDMI	1，Max resolution 4096×2304 @60Hz
	DP	1，Max resolution 4096×2304 @60Hz
	eDP	1，Max resolution 4096×2304 @60Hz
Ethernet	LAN	2，10/100/1000 Mbps，Intel I211
IO Interface	USB	2×USB 3.0，5×USB 2.0
	UART	6
	GPIO	18
	High-speed IO	33，provided by the integrated FPGA
	PCIe	3 × single-lane PCIe 3.0
	SM	1
	I2C	2
	SPI	1
	Smart Fan	System FAN（optional）
	Watchdog	Supported by BIOS
Operating System	OS	Windows 10/11，Ubuntu
Power Supply	Type	DC
	Input Voltage	12~24 V
Environment	Operating Temp.	-10 ~ 60 °C
	Storage Temp.	-40 ~ 85 °C
	Operating Humi.	10-95% @40℃，non-condensing
	Storage Humi.	0-95% @60℃，non-condensing
Dimensions	Outside Dime.	85mm×82mm
